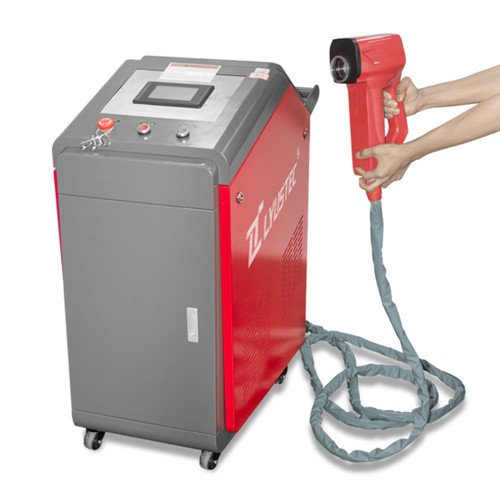

Laser cleaner for Metal Tool CL500

Laser cleaner for Metal Tool CL500


Brand Name:
LYUSTEC
Product Name:
Laser Cleaner FastCleaner-CL500


Professional custom             Lifelong maintenance

One year warranty                Free proofing

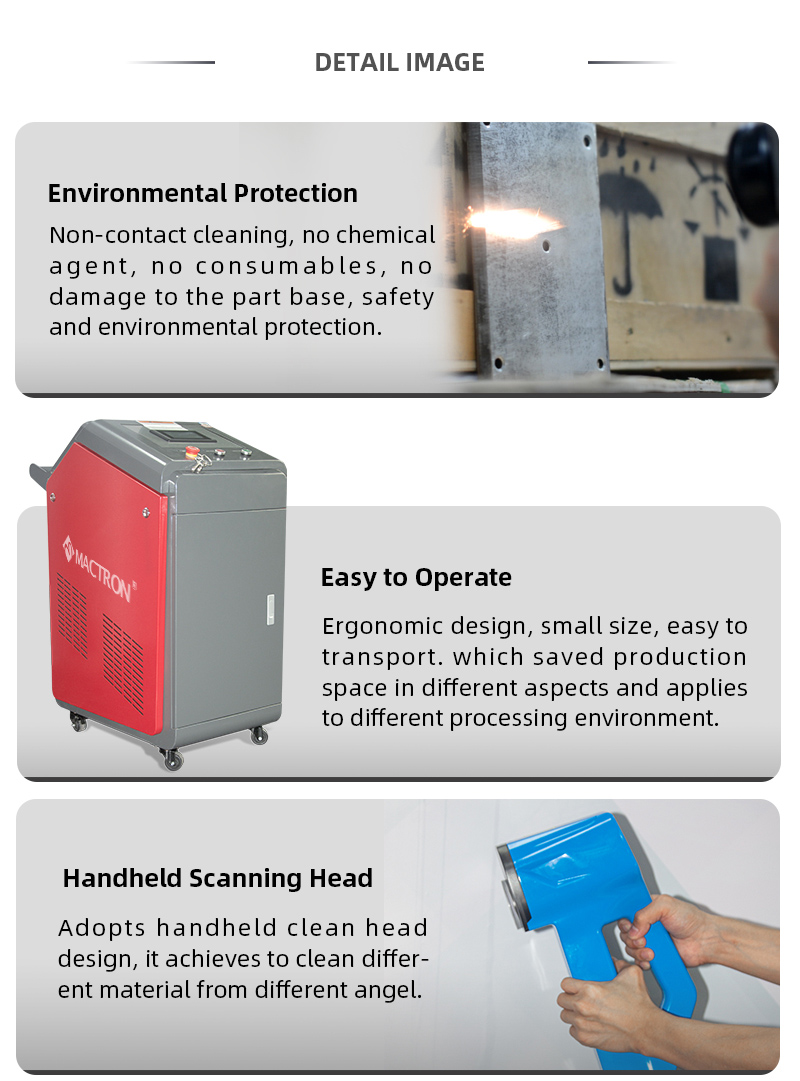

Laser cleaning (Laser cleaner for Metal Tool )is a new non-contact surface cleaning technology, which mainly uses low power and high energy density pulse laser beam to act on the surface of the workpiece, so that the surface stains, oxides or coatings can be evaporated and gasified or thermally expanded in an instant , so as to achieve the effect of surface cleaning and purification. Compared with the traditional way, it has the advantages of environmental protection, no grinding , no thermal effect etc, and has unique advantages in cleaning precision workpiece.

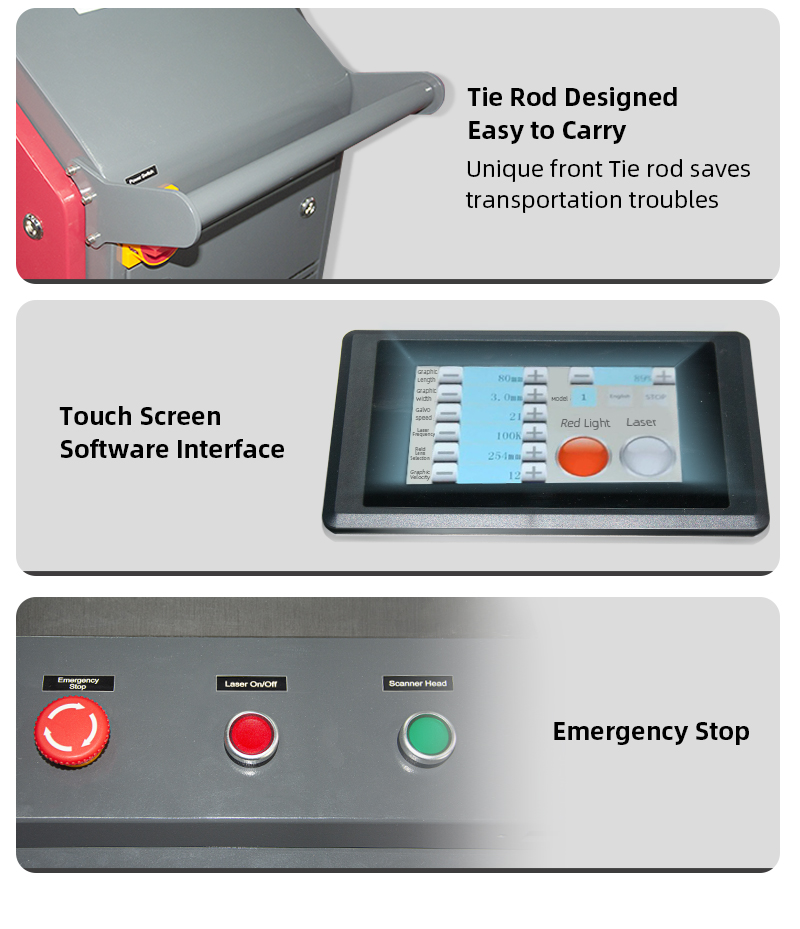

MT series laser cleaning machine has advanced technology, humanized design, small size, flexible operation, low energy consumption, environmental protection and other characteristics, with a certain degree of practicality and operability. The customer can preset the cleaning mode through the software, and can directly switch the mode for operation without adjusting the parameters, and start the cleaning without chemical reagent, medium, dust and water. Through auto focusing , surface fitting cleaning , removing resin, stain, rust, coating, paint, etc, the cleanliness is high.





The machine has a wide range of applications and is highly targeted. It is suitable for metal mold removal, stripping or removing coating, pre-treatment before parts coating, cleaning of aviation parts, restoration and preservation of historical relics.



Model FastCleaner-CL500
Power 500W
 Laser Type Pulsed Fiber Laser Generator
Wavelength 1070nm
Pulse Energy 50mJ
Peak Power 1MW
Head Weight 1.95Kg(不含QBH)
Scan Width 5mm~120mm  Continuously Adjustable
Cooling Water Cooling
(20μm)Cleaning Paint / Rust (100um)Corrosion
(20μm)Cleaning Oil 2.5m2/h
Titanium Alloy/ Stainless Steel Oxide (120um)
Cleaning Aluminum Alloy Oxide Film 1.3m2/h
