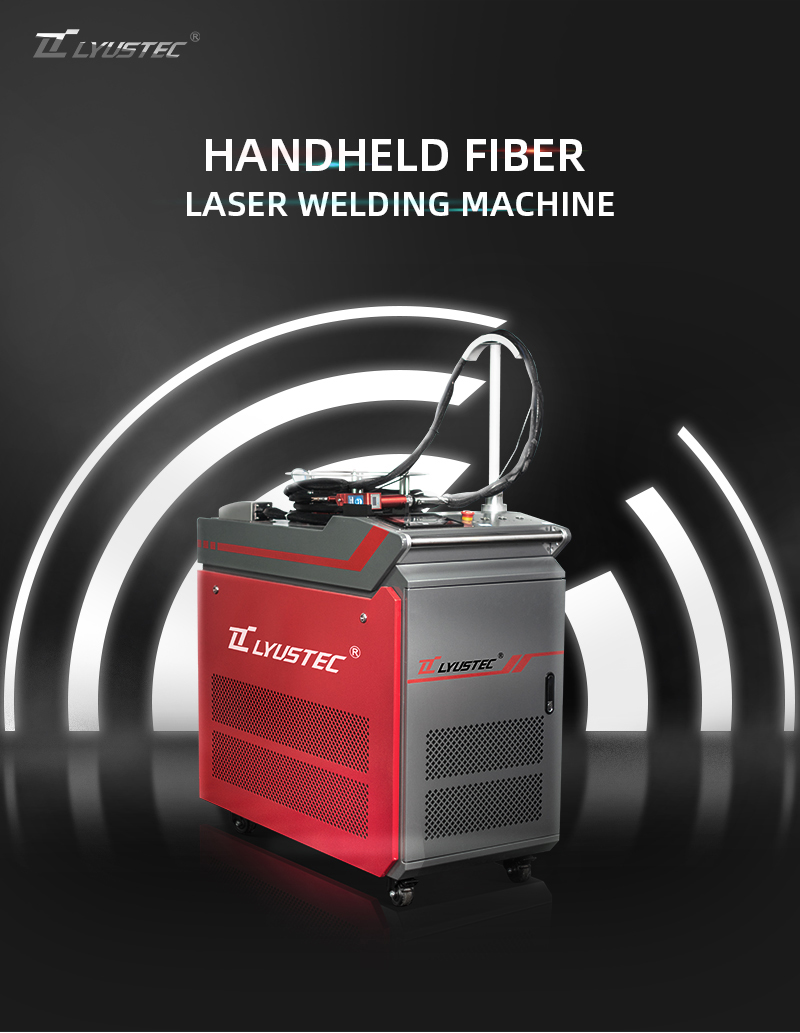

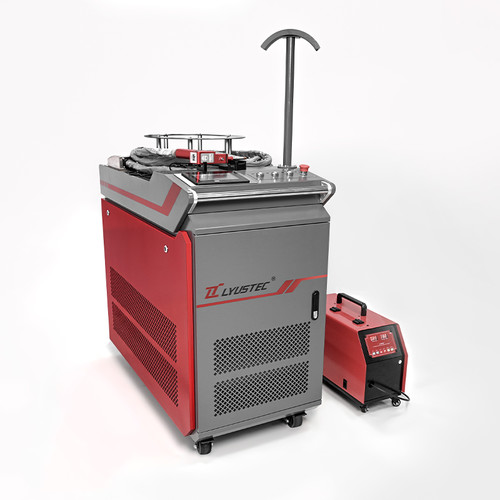

Handheld laser welder W1000FH
LYUSTEC
Product Name:
Handheld Laser Welder（W1000FH ）
Professional custom Lifelong maintenance
One year warranty Free proofing

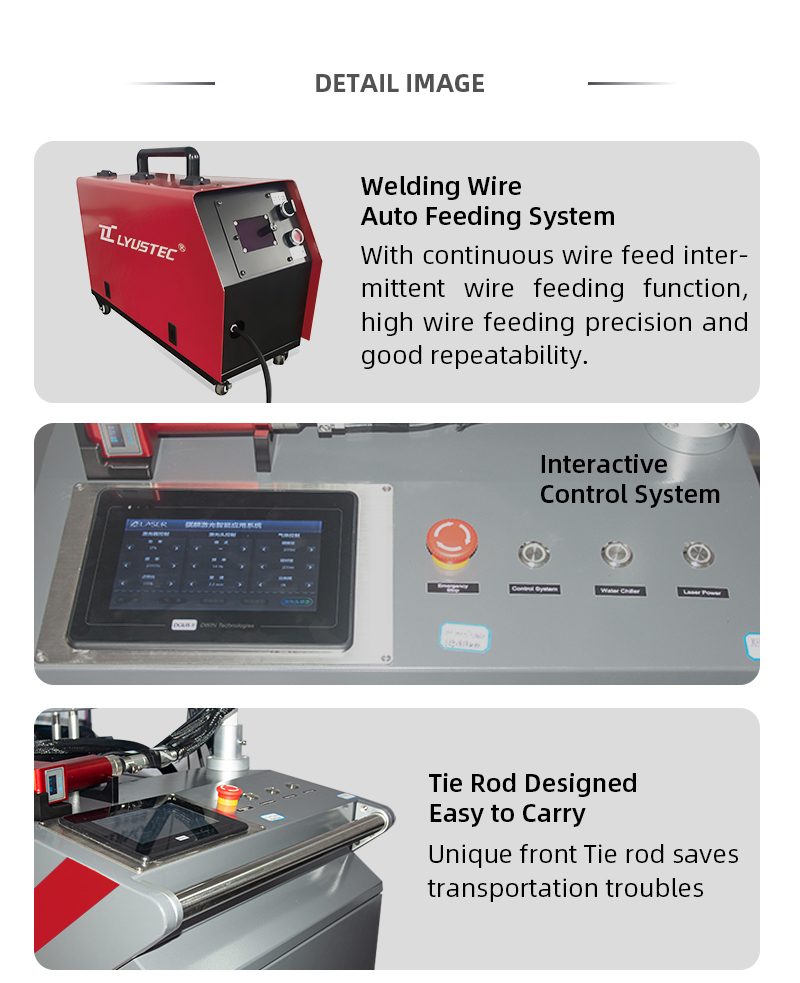

The handheld laser welder adopts a closed case design. On the basis of the previous welding machine, it is equipped with a CNC wire feeder, equipped with a dual-drive intelligent control system and a high-brightness digital display. The welding effect is smoother and beautiful. It can greatly improve the work efficiency and quality of the welding machine and further save the processing cost.

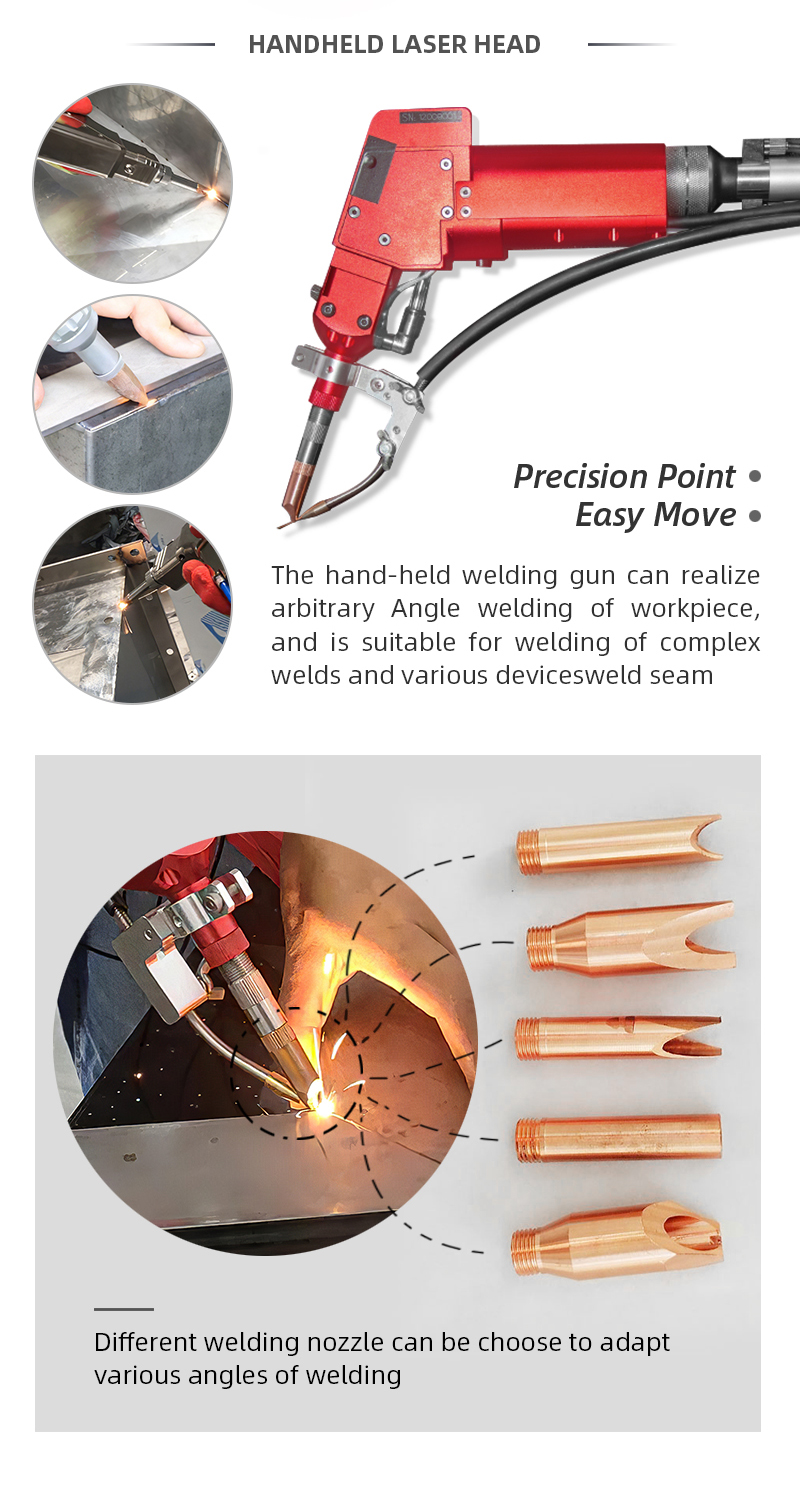

The handheld laser welder is equipped with a double swing welding head with digital display function. It can freely switch a variety of spot modes, quickly cool the gun body, high durable and long lifetime.
It is also equipped with the cutting nozzle, high energy concentration, and it can cut stainless steel materials, effectively meets the different processing requirements of customer.

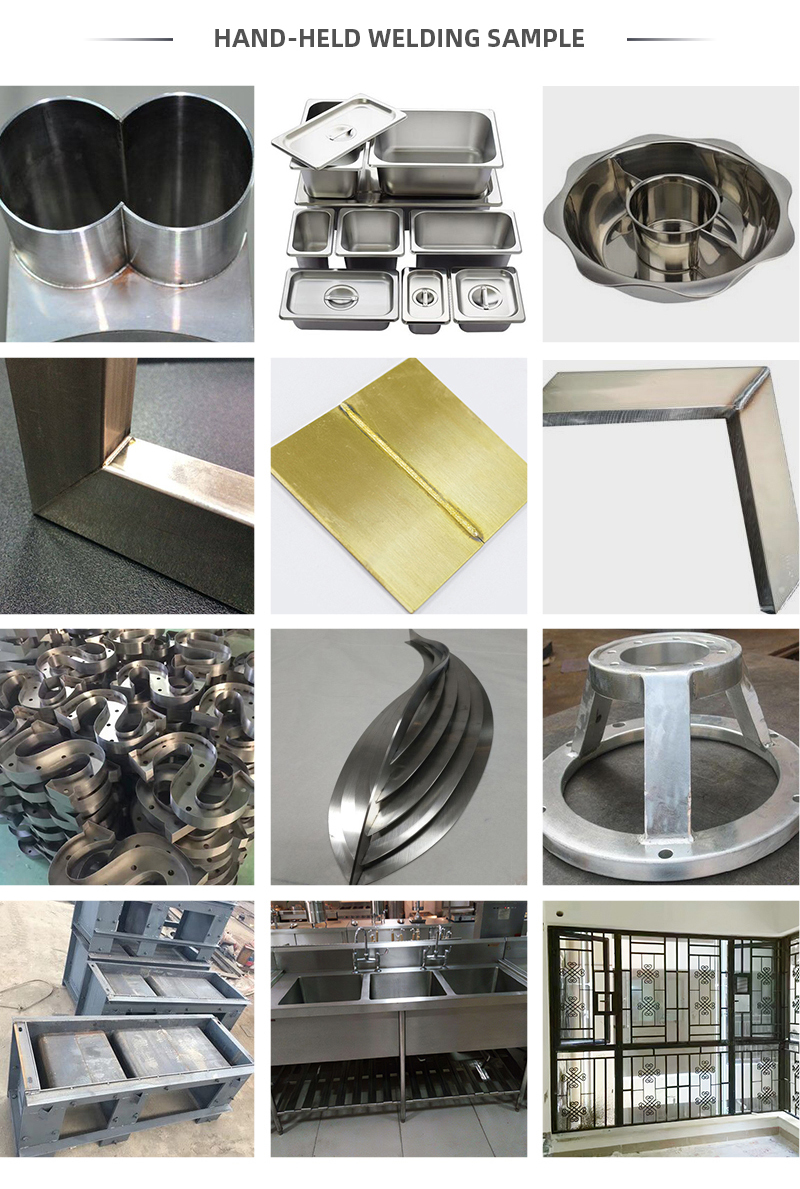

This machine is suitable for welding all kinds of stainless steel mirror characters, stainless steel paint characters, titanium plane characters, titanium spherical characters, precision titanium characters, precision aluminum characters, metal paint characters, etc., has been widely used in lighting, advertising, mold, optical communication , medical and many other industries.and it can cut stainless steel materials, effectively meets the different processing requirements of customer.
Please watch the video
| Model | FastWelder-W1000FH | FastWelder-W1500FH | FastWelder-W2000FH |
| Laser Power | 1000W | 1500W | 2000W |
| Laser Type | Fiber | ||
| Wavelength | 1070nm | ||
| Voltage | 220V±10% / 50Hz / 30A | 380V±10% / 50Hz / 40A | |
| Gross Power | <8KW | ||
| Welding Thickness | < 8mm | ||
| Welding Gap Requirements | ≤0.5mm | ||
| Welding Speed | 0~120 mm/s | ||
| Welding Head Configuration | Swing Welding Head + Water Cooling (optional) | ||
| Laser Operation | Continuous/Modulation | ||
| Beam Divergence Angle | ≤1.2mrad/m | ||
| Welding Joint Interface | QBH | ||
| Fiber Wire Length | 10m | ||
| Spot Dia | 0.2-2mm Adjustable | ||
| Positioning | Red Pointer | ||
| Cooling System | Industrial Chiller | ||
| Operating Temperature | 15~35 ℃ | ||
