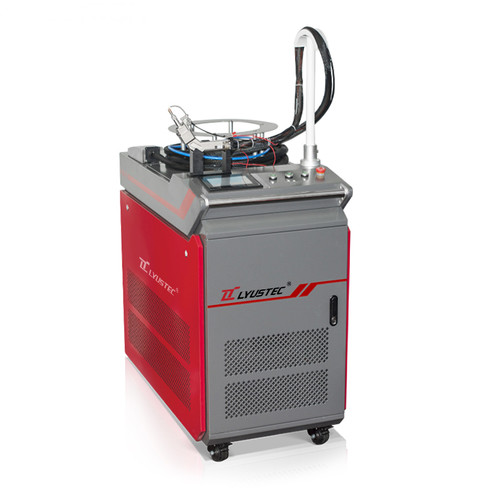

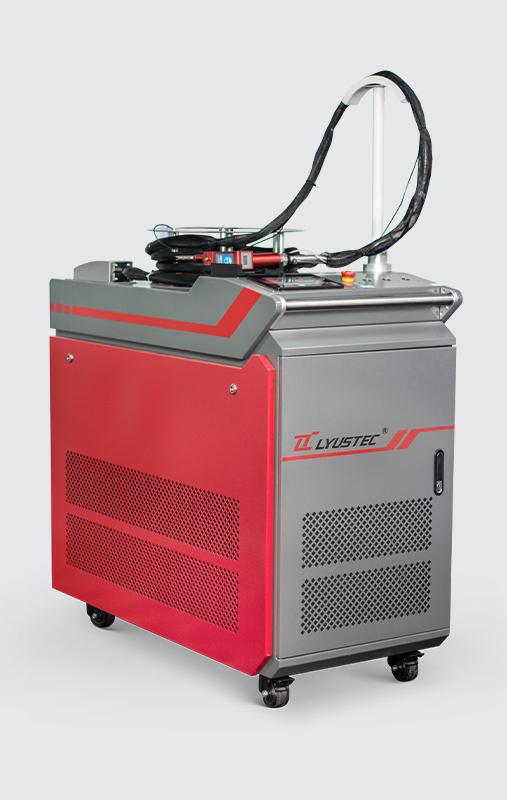

Handheld Laser Welding Machine W1500FH

Handheld Laser Welding Machine W1500FH


Brand Name:
LYUSTEC
Product Name:
Handheld Laser Welding Machine(FastWelder W1500FH )


Professional custom             Lifelong maintenance

One year warranty                Free proofing


Introduction
Handheld Laser welder adopts continuous fiber laser source, and is equipped with self-developed hand-held welding head. In terms of shape, structure and human-machine interface, it is optimized based on humanization and work effectiveness. The hand-held welding joint can be customized according to actual production, which is not often used in non-standard production. It adopts water cooled design, long-time welding without burning, small diameter and hand-held easily. It has the advantages of simple operation, beautiful welding effect, fast welding speed and no consumables.

hand welder
hand welder
hand welder



handheld laser welder

SIEMENS Electronic System
Durable and Contact


Self-Developed MACWELD Operating Software
Full touch operation display Unique and powerful


Built-in Constant Industrial Water Chiller
Intelligent control, superior performance and environmentally friendly


Brand Laser Source
Good beam quality, High energy density, High electro-optical efficiency


Human Design Handle
Reasonable design, Comfortable grip, Easy to move


Universal Pulley
Strong bearing capacity, universal movement, quiet and wear-resistant


10 Meters Optical Fiber Cable
Suitable for long-distance welding




laser welding wire feeder

Options / Accessories

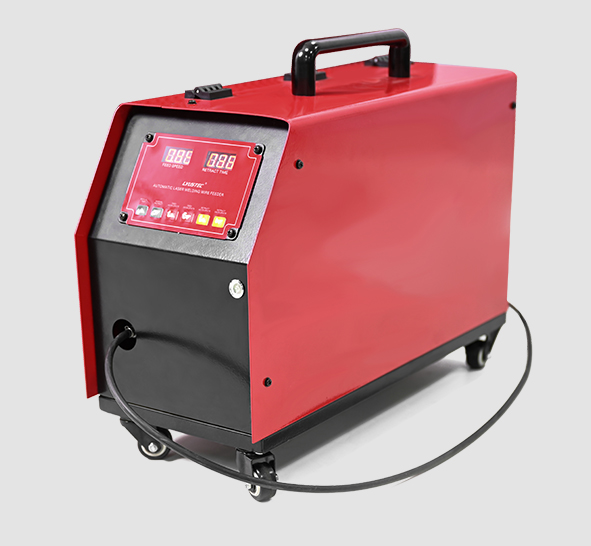

New Generation Automatic Laser Welding Wire Feeder
Automatic retract , speed up to 6 m/min, suitable for large welding seam processing

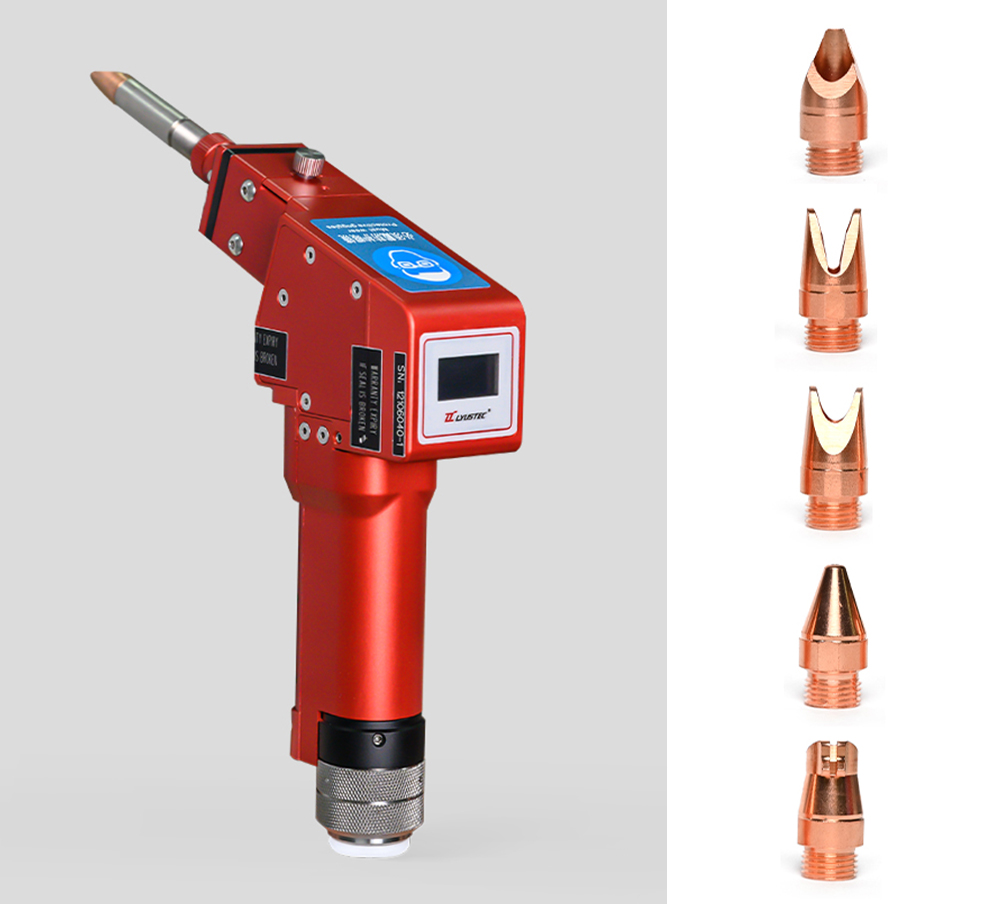

Double Wobble Head
Flexible and applicable, only weight 0.88KG (without QBH connector )

Various Copper Nozzle
Meet different welding needs

hand welder

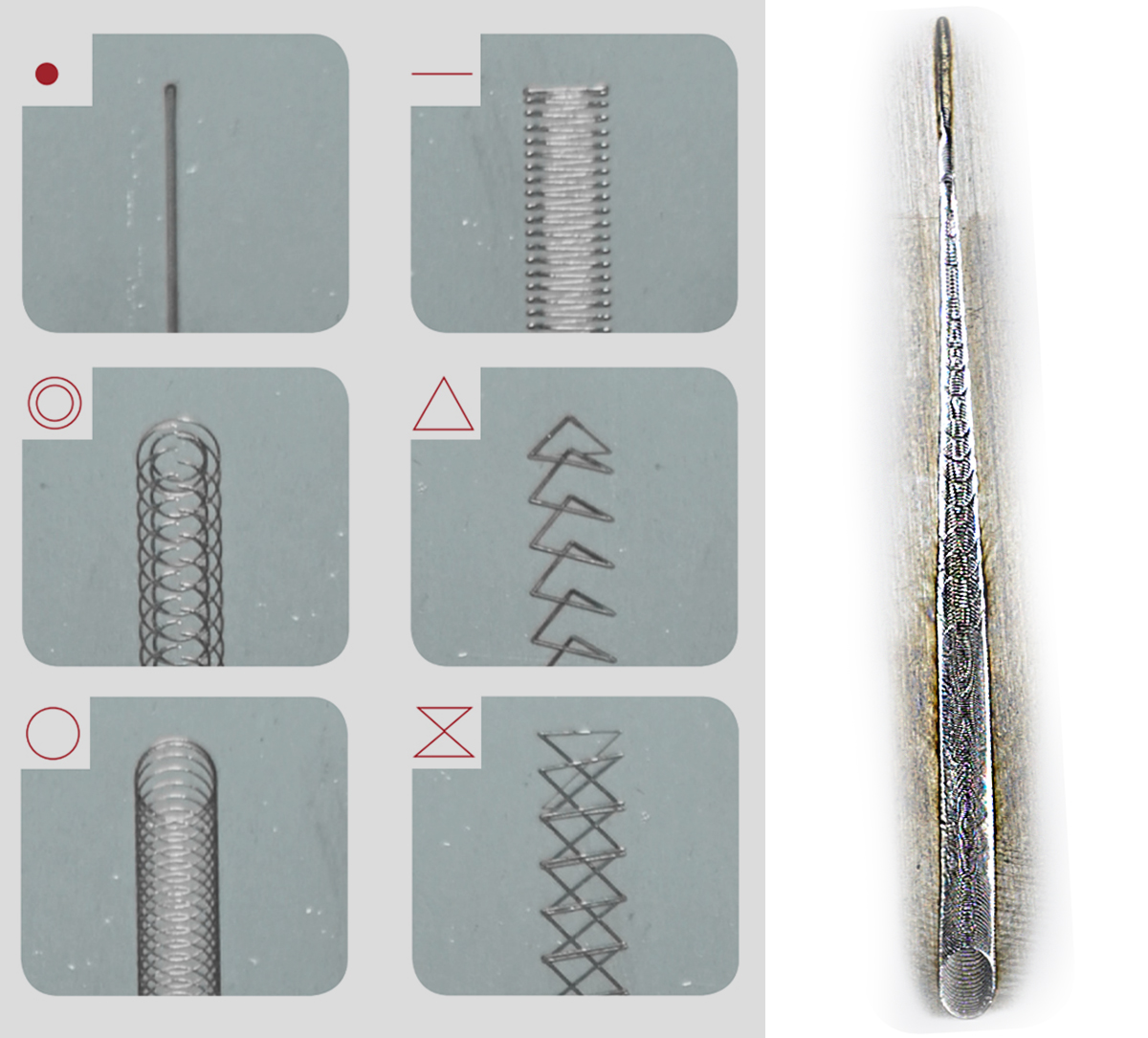

Six spot mode Exquisite welds

Built-in Wobble Welding
Wobble width up to 5mm

hand welder




Handheld laser welder vs Traditional welding machine

Type



FastWelder W-FH

Traditional Welder (MIG, TIG)

Speed



Up to 2-10 X

Average

Weld Types



> 6 Types (Including Fish Scale Patterns, etc.)

Single

Welding Heat Quality



Consistent High-Quality Results

Depends on User Experience

Learning Curve



Quick and Easy

Steep

Material Flexibility



Wide Range with No Set Up

Limited with Consumables Changes

Distortion & Deformation



Very Low

High

Heat Affected Zone



Small or None

Large with Burning Color

Wobble Welding



Yes - Additional Weld Width Up to 5mm(0.197 in)

No

Consumables



High with Professional Welder

Welding Rod

Environmental Pollution



Small

Large

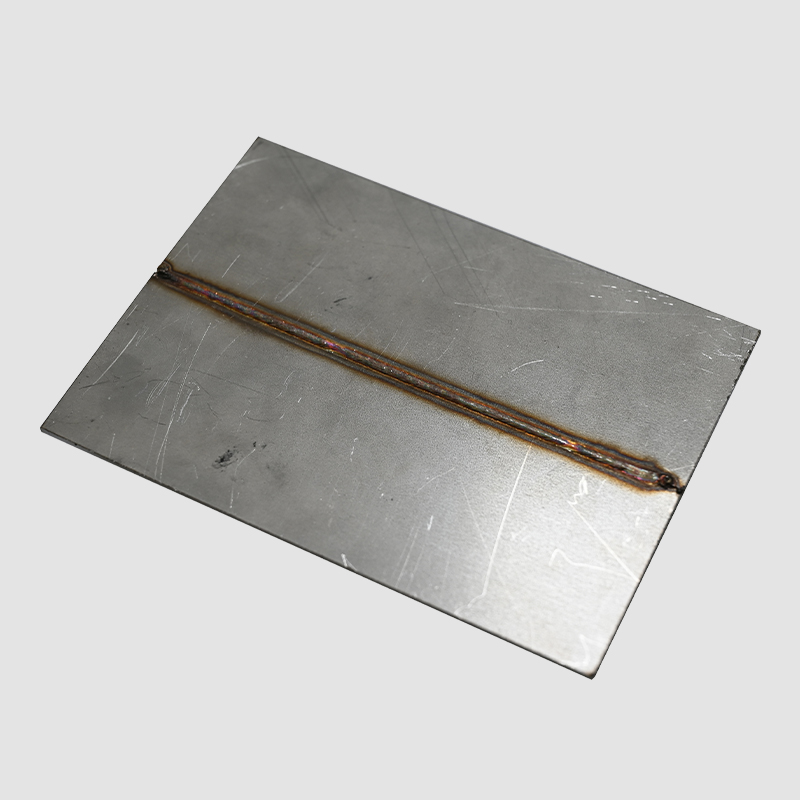

Welding Type
Handheld laser welding machine

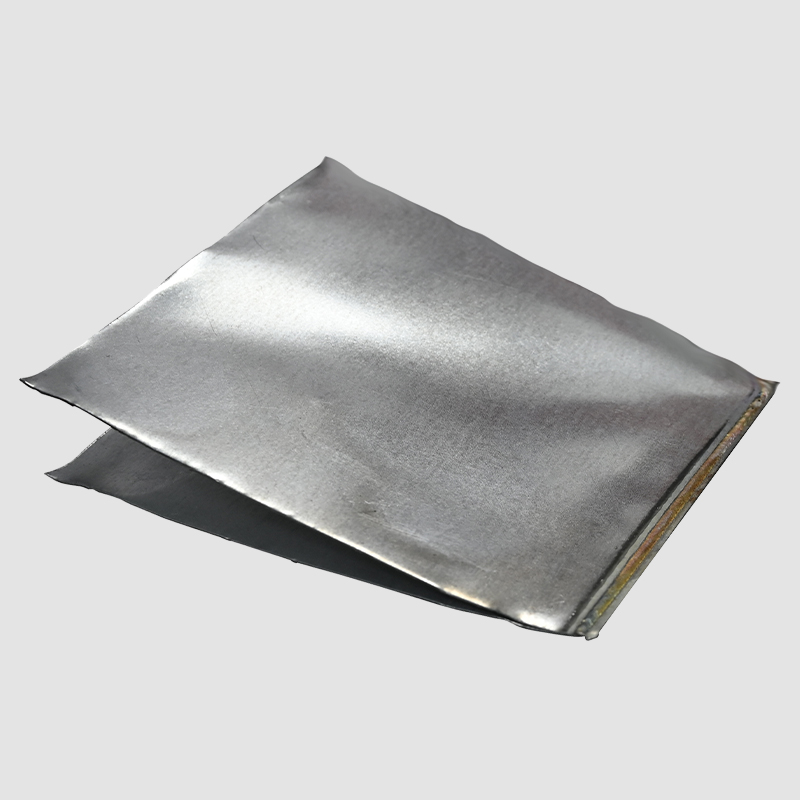

0.35mm Galvanized Iron Sheet
Handheld laser welding machine

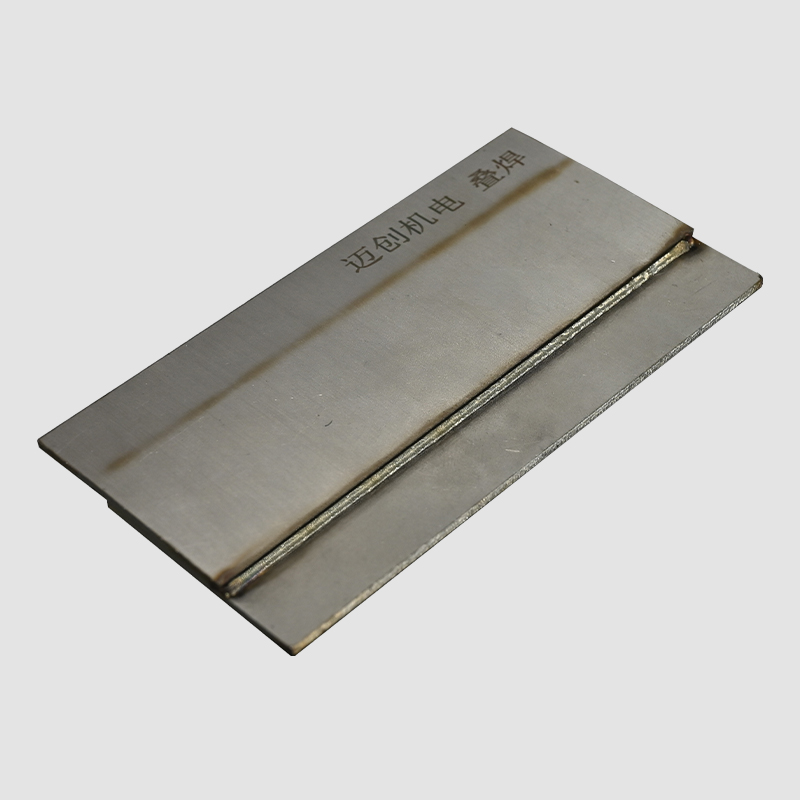

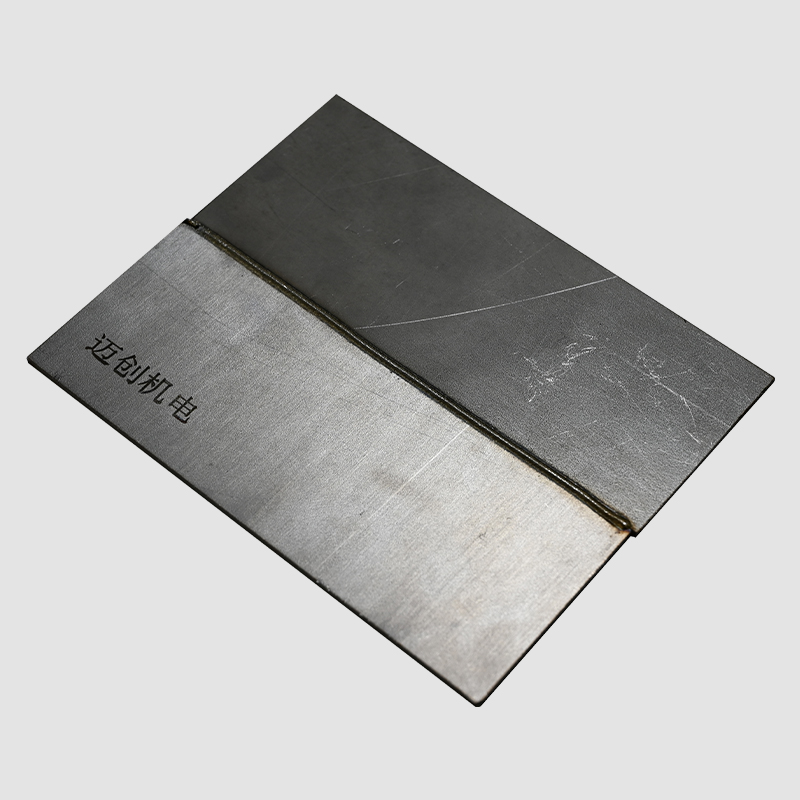

Parallel Welding
Handheld laser welding machine
Stitch Welding
handheld laser welder

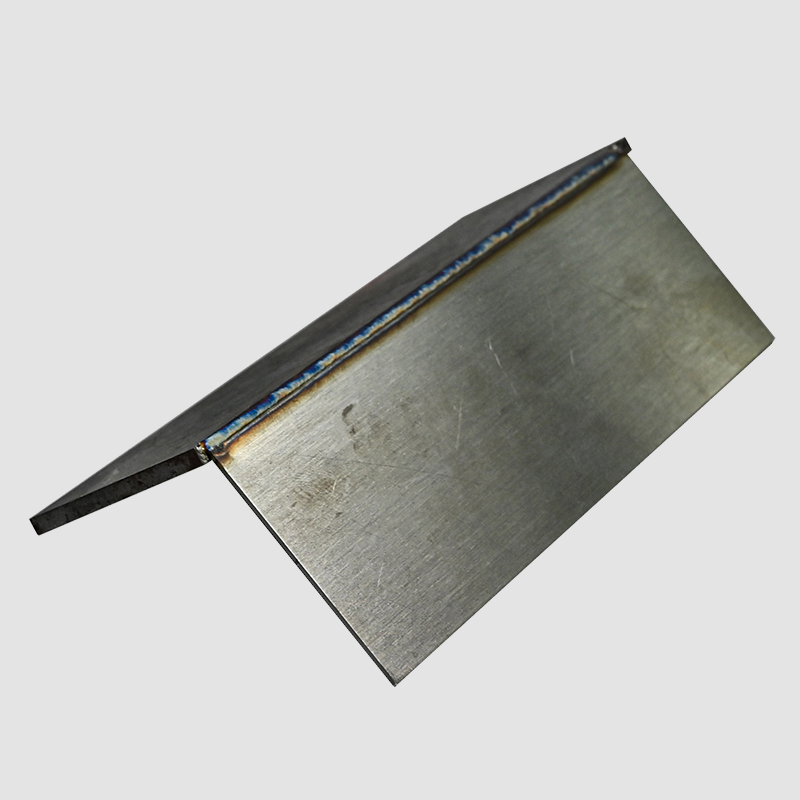

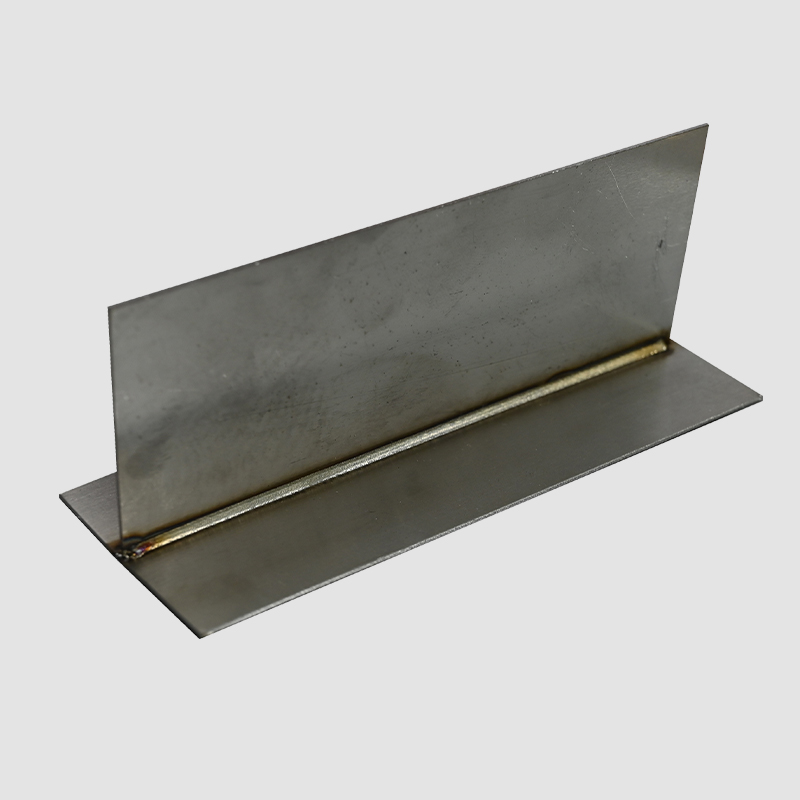

Vertical Welding
Handheld laser welding machine
1mm Stainless Steel Joint with 3mm Galvanized Sheet
Handheld laser welding machine
Laser Cladding
Application Industry
Handheld laser welder is easy to handle Thick Metal / Thin Metal / High Reflection Metal, including galvanized sheet, aluminum, alloy, stainless steel and other materials It is mostly suitable for Metalfabrication shops, Construction and piping, Maintenance and repair, Automotive, Advertising, Farm, Furniture&appliances, Medical instruments, Aerospace & transportation.

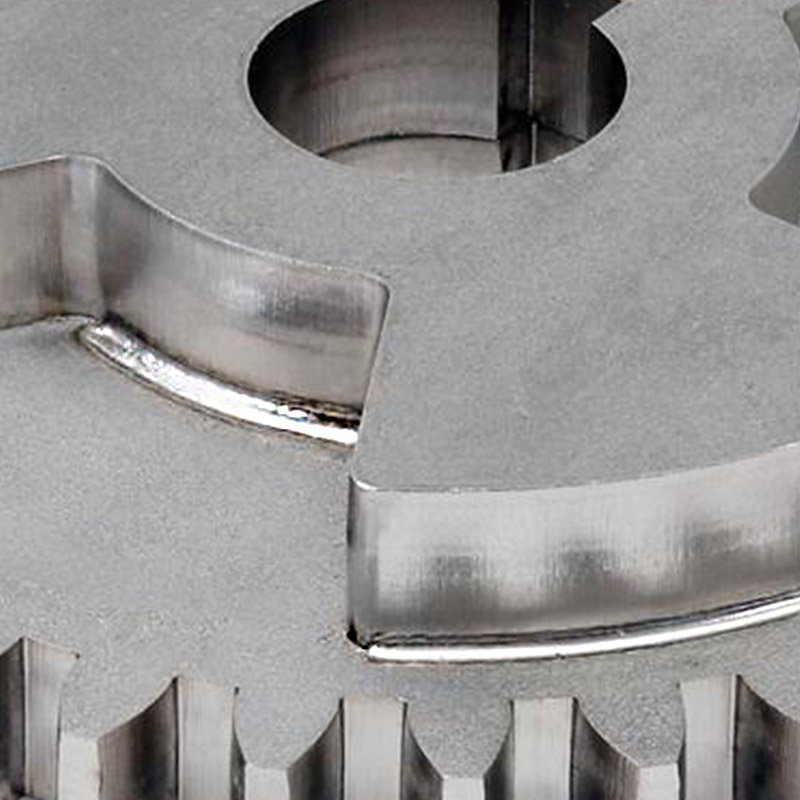

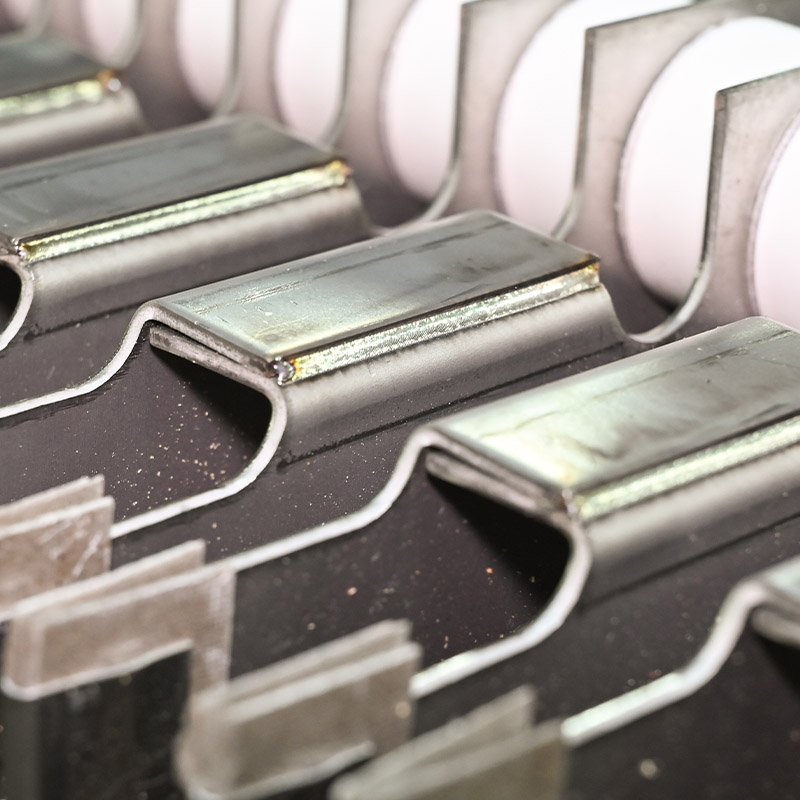

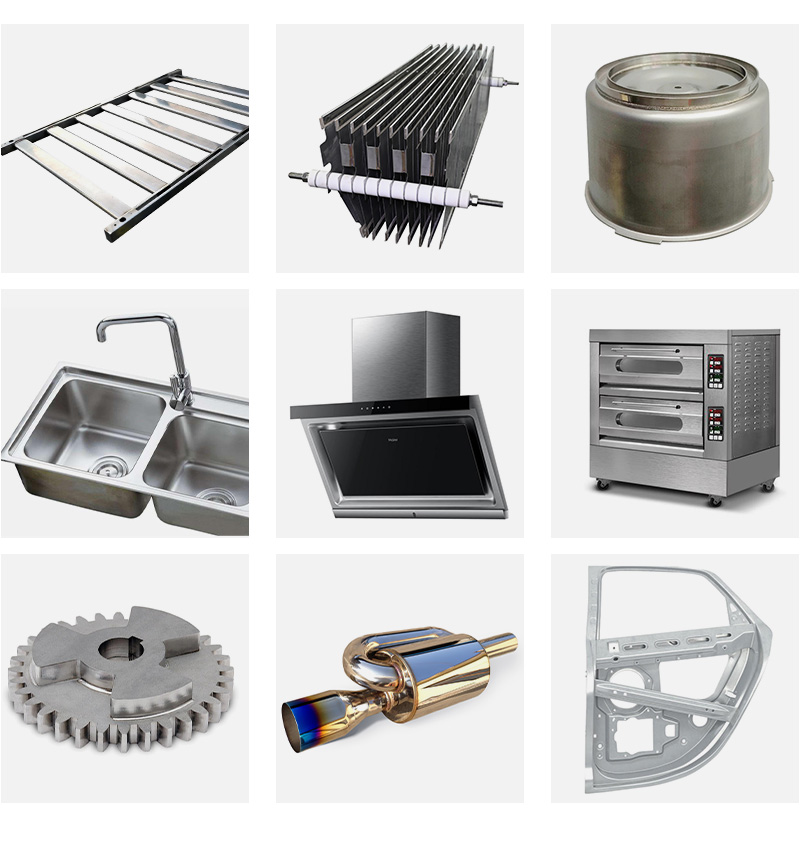

Sample Display

hand welder
Material Range

Material Thickness Single-side Weld Thickness Double-side Weld
Stainless Steel Up to 5mm(0.197 in) Up to 15mm(0.590 in)
Galvanized Steel Up to 5mm(0.197 in) Up to 15mm(0.590 in)
Mild Steel Up to 5mm(0.197 in) Up to 15mm(0.590 in)
Aluminum Up to 4mm(0.157 in) Up to 8mm(0.315 in)


Please watch the video of handheld laser welder
Model FastWelder-W1000FH FastWelder-W1500FH FastWelder-W2000FH
Laser Power 1000W 1500W 2000W
Laser Type Fiber
Wavelength 1070nm
Voltage 220V±10% / 50Hz / 30A 220V±10% / 50Hz / 30A
380V±10% / 50Hz / 40A
380V±10% / 50Hz / 40A
Gross Power <8KW
Welding Thickness < 8mm (0.315 in)
Welding Gap Requirements ≤0.5mm(0.019 in)
Welding Speed 0~120 mm/s(0 - 4.724 in/s)
Welding Head Configuration
Wobble Welding Head
Laser Operation Continuous/Modulation
Beam Divergence Angle ≤1.2mrad/m
Welding Joint Interface QBH
Fiber Wire Length 10m (39.370 in)
Spot Dia 0.2-2mm Adjustable
Positioning Red Pointer
Cooling System Water Cooled - Inner Industrial Chiller
Process Gas Argon, Helium, Argon + CO2 Mix
 Pressure Approx. 620 kPa, (90 psi)
Dimensions (L × W × H) 1200mm (47.244 in) × 600mm (23.622 in) × 1100mm (43.307in)

Weight 245Kgs (540 lbs)

Work Environment 15~35 ℃
