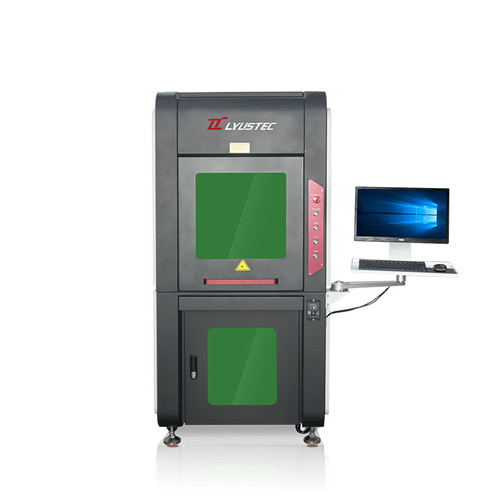

Enclosed Fiber Laser Marking Machine
LYUSTEC
Product Name:
Enclosed Fiber Laser Marking Machine
Professional custom Lifelong maintenance
One year warranty Free proofing

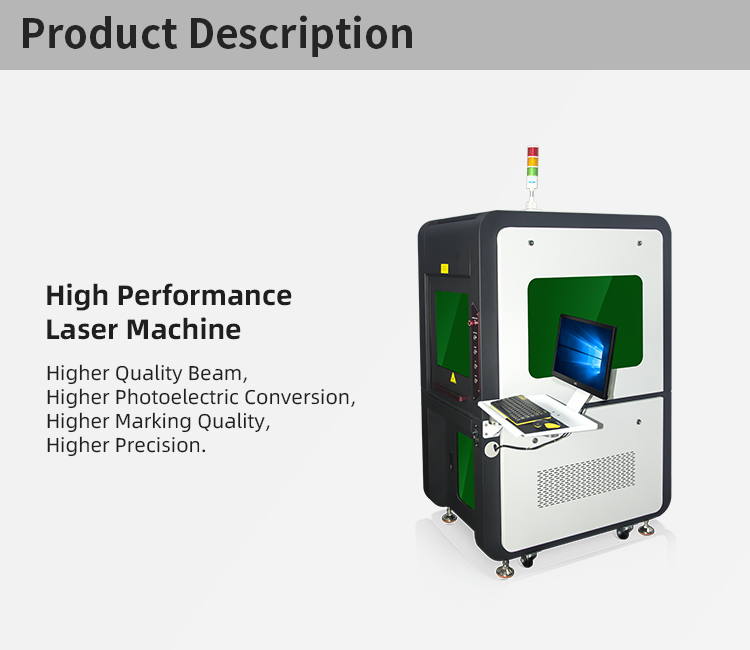

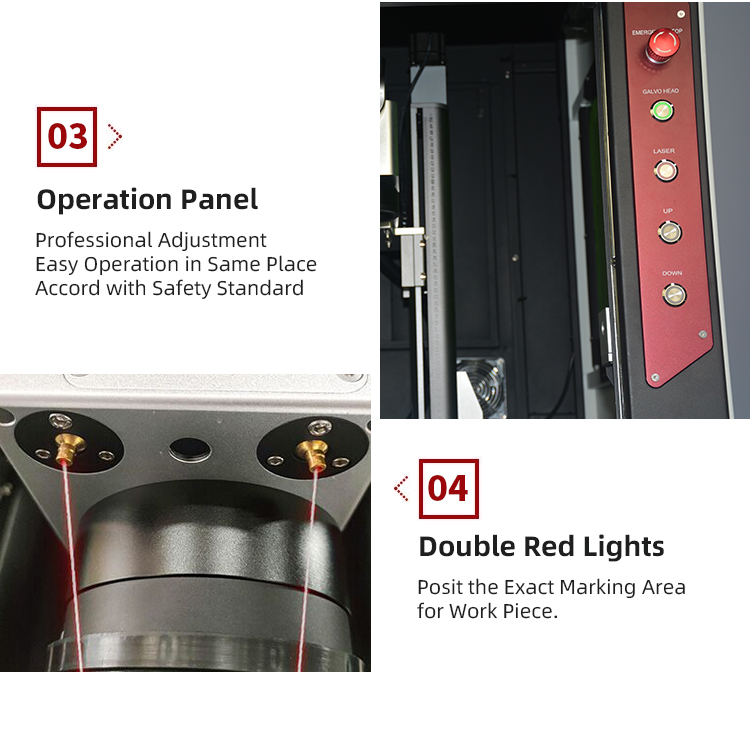

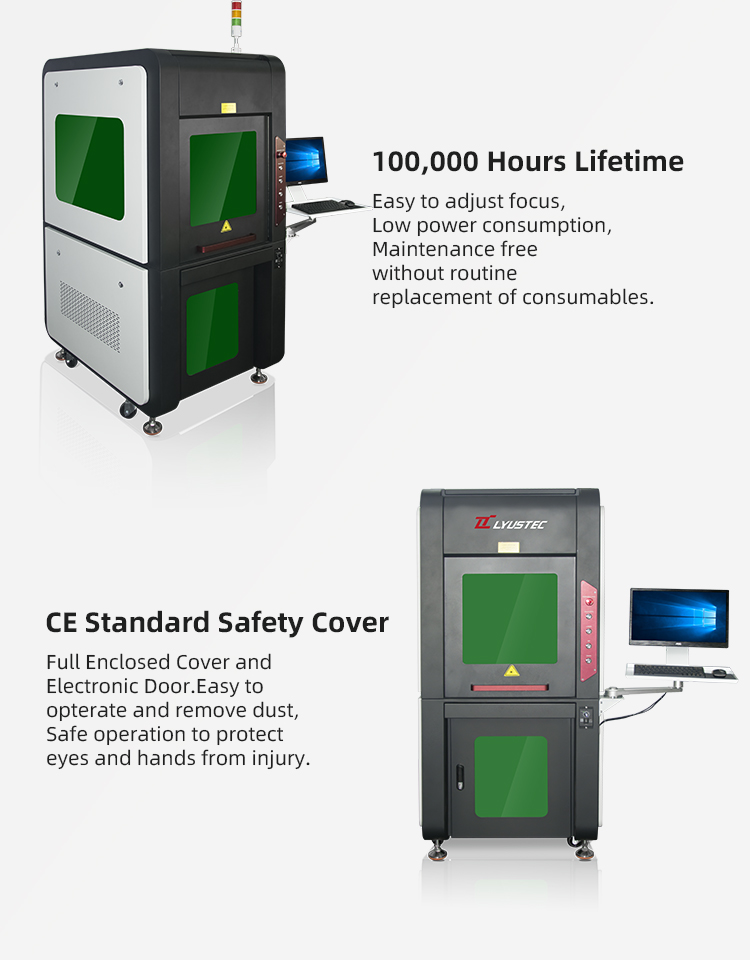

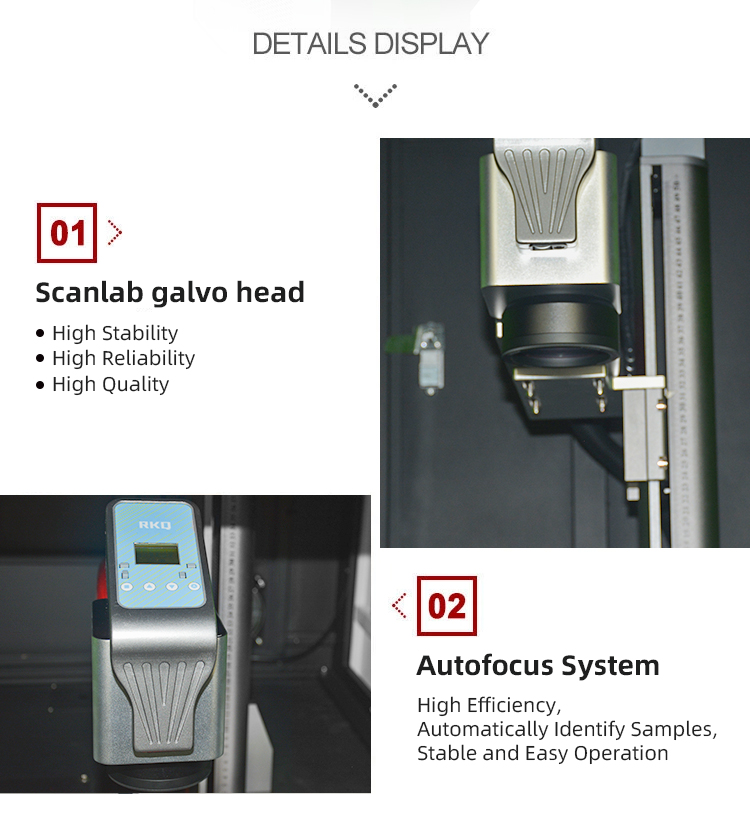

The enclosed Fiber Laser Marking Machine is designed with an integrated closed structure, which can effectively prevent the human from being damaged by light beams and smoke, without optical pollution and power coupling loss, while maintaining the cleanliness of the laser head. This model is equipped with brand fiber laser, which enhances the performance and stability. The output beam has good quality, fast speed and high precision. At the same time, it is equipped with an automatic lifting door and focusing system, which improves the safety and technology of the equipment, and realizes precise focus and high-speed marking. Customers can design customized models according to their needs to achieve more effective production results.
Applicable Material
Suitable for processing a variety of metal and non-metal materials, especially for marking high hardness, high melting point, and brittle materials.

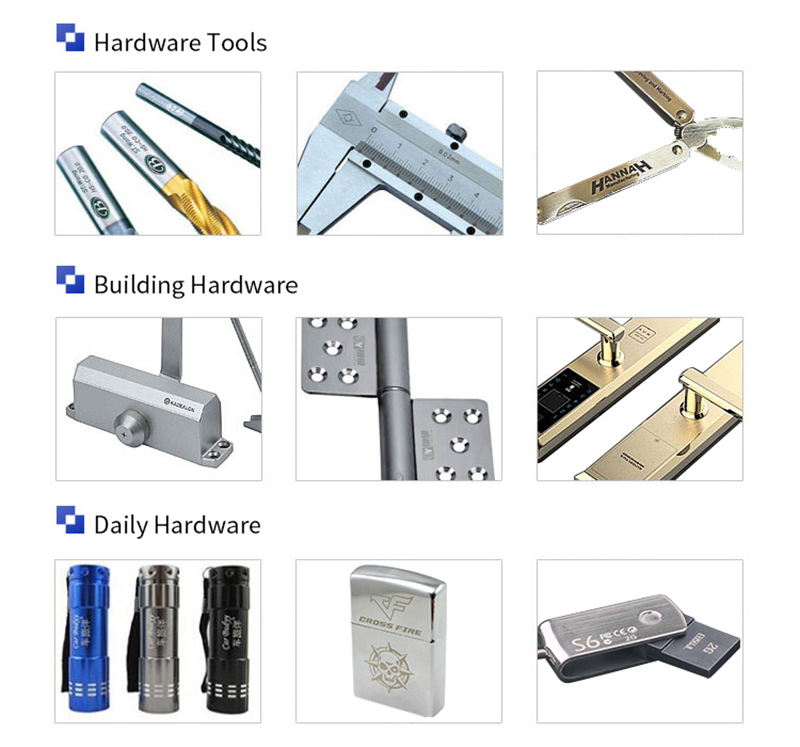

Applicable Industry
Widely applied in electronic component, communication equipment, the spare parts of automobiles and motorcycles, instrument and meter, aerospace, war products, hardware and machinery, sanitary equipment, medication, food and beverage, cosmetics, drugs packing, medical appliance, solar energy, handicraft and so on.
Laser Power |
10W |
20W |
30W |
50W |
100W |
200W |
Laser Type |
Fiber Lasers |
|||||
Wavelength |
1064nm |
|||||
F = Fiber, Customized Specification is Available |
||||||
Processing Area |
70*70MM,110*110MM,175*175MM, 200*200MM, 300*300MM (Optional) |
|||||
Frequency Range |
20-200Khz |
|||||
Beam Quality |
<1.6M2 |
|||||
Laser Source Lifetime |
≤100000h |
|||||
Marking Speed |
≤8000MM/S |
|||||
Marking Depth |
≤2MM |
|||||
Repetition Precision |
±0.01MM |
|||||
Min. Line Width |
0.01MM |
|||||
Min. Character |
0.2MM |
|||||
Cooling Mode |
Air Cooling |
|||||
Lifting Height |
100~500MM (700MM) |
|||||
Graphic Formats Supported |
PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG |
|||||
Power Source |
AC 110/220V±10%, 50/60Hz |
|||||
Gross Power |
< 500W |
|||||
Work Environment |
Temp: 10~40 ℃,Humidity : 5 ~85 %, Clean, Less Dust |
|||||
|
