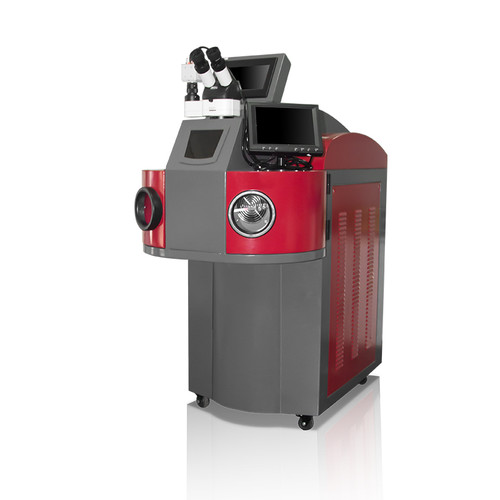

Jewellery Laser Welding Machine W200J
Brand Name：
LYUSTEC
Product Name:
W200J Jewellery Laser Welding Machine
Professional custom Lifelong maintenance
One year warranty Free proofing

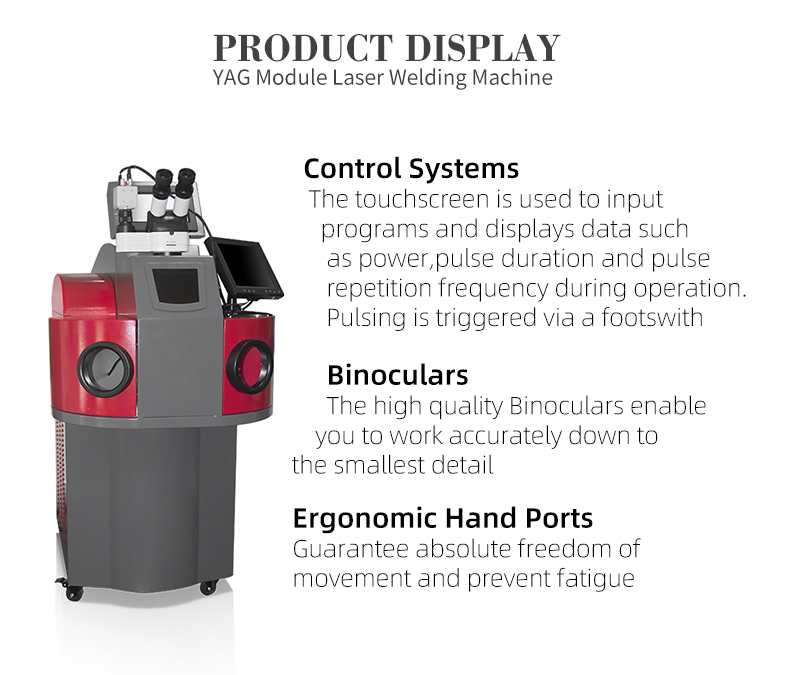

W200J Jewellery Laser Welding Machine adopts ergonomic design, suitable for jewellery laser welding industry, professional appearance design, equipped with special microscope observation system of cross cursor, with high-speed electronic filter device, which can protect operators' eyes. The high power beam expanding system can obtain more fine light spots and meet the needs of fine laser spot welding; the whole machine is convenient to carry and transport, and the operation process is simple. Good welding effect, stable and reliable equipment, low failure rate.
.jpg_%3b%20filename_%3dutf-8%27%271599644683_lyustec-%25E7%258F%25A0%25E5%25AE%259D%25E7%2584%258A%25E6%258E%25A5_01%25281%2529.jpg)
.jpg_%3b%20filename_%3dutf-8%27%271599644703_lyustec-%25E7%258F%25A0%25E5%25AE%259D%25E7%2584%258A%25E6%258E%25A5_02%25281%2529.jpg)
Applicable Material
Various metal materials: gold, silver, platinum, copper, titanium, stainless steel and other metal materials. Including: ring, earring, bracelet, necklace, necktie clip, cuffs and other jewelry, metal jewelry.
Applicable Industry
This series of products are specially designed for jewelry and electronic industry. They are mostly used in jewelry, electronic components, communications, handicrafts and other industries. They can repair and weld various metals and alloys such as stainless steel, copper, gold, silver, K-gold, etc.
| Model | W200J | W300J |
| Laser Power | 200W | 300W |
| Laser Type | YAG Laser Source | |
| Wavelength | 1064nm | |
| Max. Pulse Energy | 80 J | 90 J |
| Gross Power | ≤9KW | ≤12KW |
| Voltage | 220V±10% / 50Hz/30A（or）380V±10% / 50Hz /40A | |
| Pulse Width | 0.2-10ms | |
| Frequency | 0.5-20Hz | |
| Spot Adjustable Range | 0.2-2mm | |
| Control System | Micro Touch Screen | |
