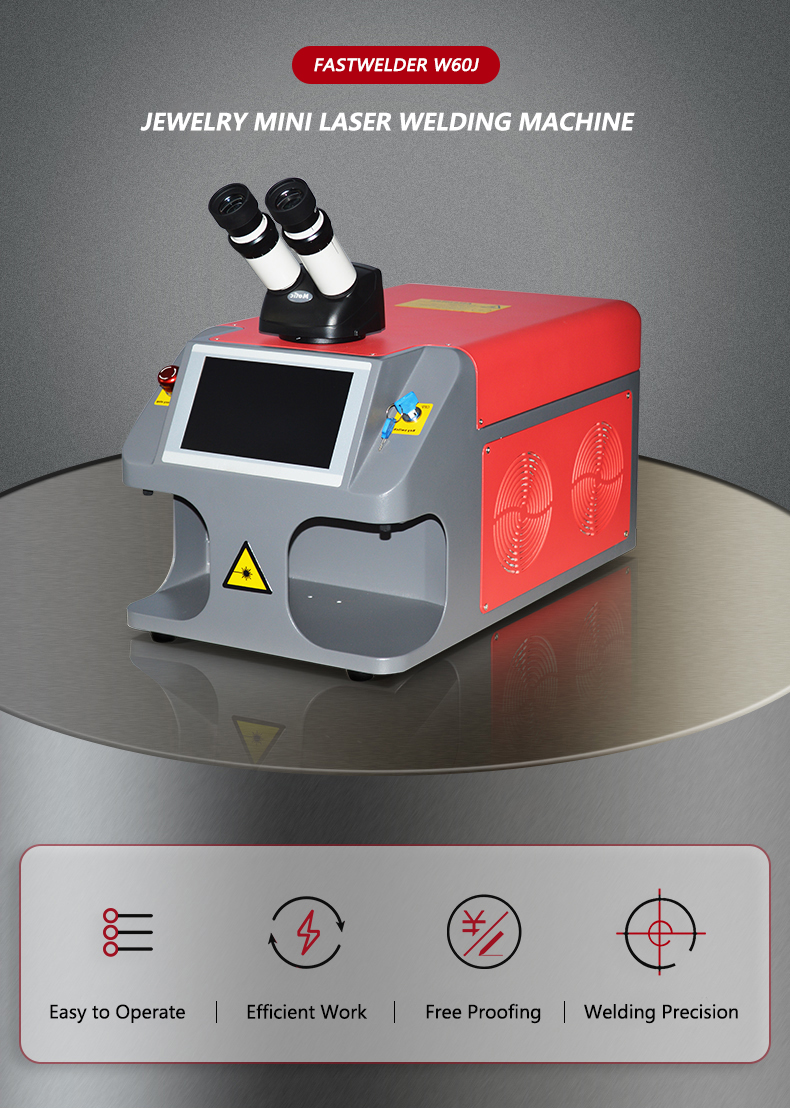

Jewelry Mini Laser Welder W60J

Jewelry Mini Laser Welder W60J


Brand Name:
LYUSTEC
Product Name:
Jewelry Laser Welder W60J


Professional custom             Lifelong maintenance

One year warranty                Free proofing

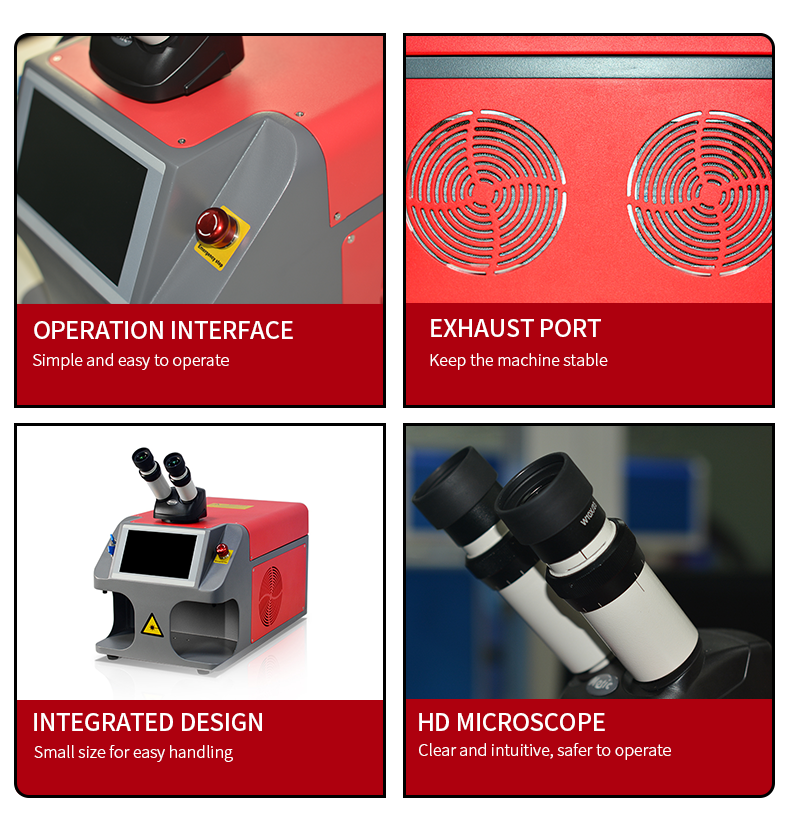

The jewelry mini laser welder is ergonomically designed with a dedicated microscope viewing system with a crosshair and a high-speed electronic filter to protect the operator's eyes. The whole machine is small in size, portable and easy to operate. The welding effect is good, the equipment is stable and reliable, and the failure rate is low.

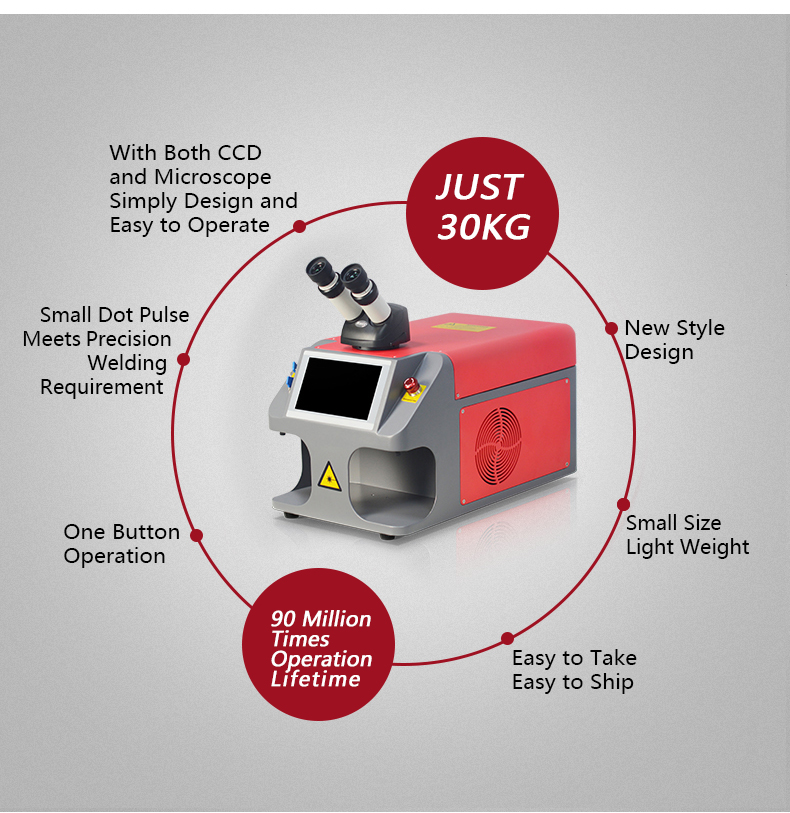

Advantage:
• New style design, small size, light weight, easy to take, easy to ship.
• Small dot pulse, meet precision welding requirement.
• With both CCD and microscope , simply design and easy to operate.
• Adopt imported solid xenon lamp, 90 million times operation lifetime.
• Specially lighting lamp treated. Low consumption, long lifetime.
• Integrated with CVT fans and automatic pumping system, one button operation.



jewelry laser welder
jewelry laser welder
jewelry laser welder

Designed for the jewelry and electronics industries, this series is used in jewelry, electronic components, communications, handicrafts and other industries. It can repair and weld various metals and alloys such as stainless steel, copper, gold, silver and K gold.
fiber laser welder jewelry


Model

W60J

Max. Power

60w

Wavelength

1064nm

Max. pulse energy

50J

Pulse duration

0.2-10ms

Pulse frequency

0.5-20Hz

Focus diameter

0.2-2mm

Controller system

 Micro-Touch Screen

Gross power

≤4KW

Voltage

220V ±10% /50Hz/30A
